Product Name : | VDE AC SOCKETS VDE AC 電源插座 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | Power plugs/sockets/jacks (Electronic Components) | |
| More Products : | Click here! | |
| Contact Details : | Sunny Development Co 新力發展公司 | |
| Product Code : | TC08-271-01 |
Product Details
1. Dielectric Strength
1,000 volts AC (50/60Hz) for 1 minute. (Primary Circuit)
500 volts AC (50/60Hz) for 1 minute. (Secondary Circuit)
2. Insulation Resistance
100 megohms Min. at 500 volts DC
3. Contact Resistance
30 millohms Max. (Between Terminals)
4. Rating
125 volts AC 3A (Primary Circuit)
12 volts DC 0.5A (Secondary Circuit)
5. Life Test
5,000 cycles of insertion and extraction
at a rate 25 to 30 cycles per minute.
Product Attachment

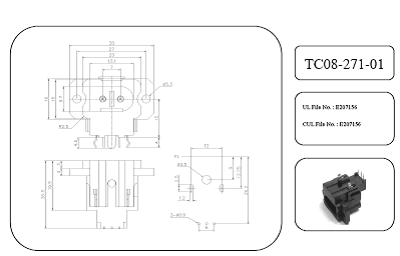

| File Name : Clipboard15.jpg |
| File Size : 26.54KB File Type : image/jpeg |
