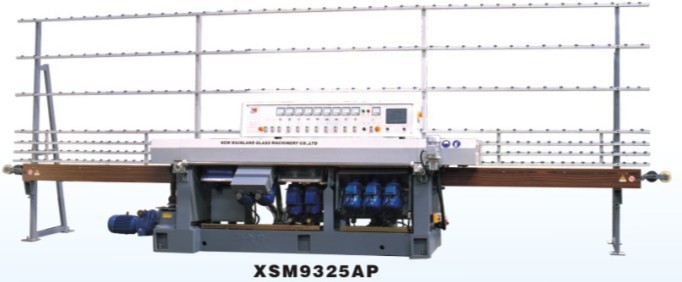

XSM9325 A/AP-Glass Straight-Line Edging Machine is designed for grinding & polishing the straight edge and multiple angle edges on flat glass of different size and thickness. Angle edge from 0-45°can be adjustable. Coarse grinding, fine grinding, high precision, easy handing, and high efficiency, it is principal instrument for glass arts and crafts and glass furniture industry. The machine has manual and PLC for your choice.

Main specifications:

1. Transporting speed: 1-5m/min

2. Max grinding range: 4mm

3. Chamfer angle: 0-45°

4. Min size of glass: 60×60mm

5. Thickness of glass: 3-25mm

6. Total power: 20kw

7. Occupy Area: 7300×1300×2500mm

8. Weight: 3800kg

9. Voltage: 380V 50Hz
