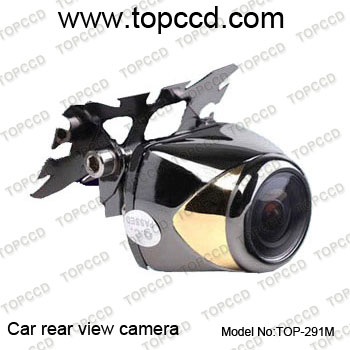

Bracket mount rear view camera with reversing guard line
View Large
Product Name : Bracket mount rear view camera with reversing guard line
Product Origin : China
Product Category : CCTV CMOS cameras
More Products : Click here!
Contact Details : Topccd Industrial Co.,Ltd.
Product Code : TOP-291M
Product Details

 Feature:


1.)Super wide angle 170deg(diagonal)

2.)Waterproof camera for long-term outdoor usage

3.)Compact size for more convenient installation

4.)Hidden-type, specially designed for car rear view systems

5.)Other functions:Parking line,Mirror image and original image(optional)



Specification:

Model:TOP-291M

1.)Image Device:Micron CMOS low illumination sensor (OV-7950)

2.)TV System:NTSC

3.)Effective Pixels:NTSC: 656H*492V

4.)Sensing Area:3.584mm(H)*2.688(V)mm

5.)Scanning System:2:1Interlace

6.)Sync.System:Internal

7.)Horizontal Definition:420 TV Lines

8.)Minimum Illumination:0.2 Lux/F1.2

9.)Video Output:1.0Vp-p 75 ohm

10.)Gamma Consumption:0.45

11.)AGC:ON

12.)S/N Ratio:Better than 48dB

13.)White Balance:Auto

14.)Electronic Shutter:1/50~1/10000 sec

15.)BLC:Auto

16.)Waterproof:IP67-IP68

17.)Current Consumption:Max.65mA

18.)Power Supply:DC12V

19.)Operating temperature:from -20deg to +75deg (relative humidity 95% max)

20.)Storage temperature:from -40deg to +85deg (relative humidity 95% max)

21.)Lens:1.7 mm

22.)Lens Angle:170deg(diagonal)

23.)Weight:0.25kg

24.)Other functions:Parking line
