IMADA MX2 系列 立式电动支架 Vertical Motorized Test Stand
(Force Gauge shown in photo is sold seperately)
(Flat chuck GC-1100 shown in photo is sold seperately)
用途及特点
标准型测量支架
可通过数字对速度进行设置，操作简便，使用方便，同时兼具功能性的通用型设备。
- High functioning, High rigidity.
- Ideal for durability and repetition test due to timer and counter functions.
- Easy to set up running pattern with its control panel monitor.
最大负载
500N～2500N (50kgf～250kgf) - S
Specifications for MX2 seires Motorized Test Stand
*1 Please contact us if you would like to combine other force gauges or load cells with the test stand.
*2 To mount a high capacity model gauge, another mounting plate is necessary.
*3 Valid only when combined with a digital force gauge (ZT series) and a dedicated cable
*4 We cannot ensure the perfect prevention against sensor break-down.
| Model | MX2-500N | MX2-1000N | MX2-2500N |
|---|---|---|---|
| Capacity | 500N (50kgf) | 1000N (100kgf) | 2500N (250kgf) |
| Maximum height of a sample | Please refer to “t” of Dimensions below. | ||
| Deflection at maximum load | Less than 0.5mm | ||
| Test speed | 10-300mm/min | ||
| Gauges that can be combined (*1) | Force gauges and DPU series load cells (up to 500N)except High capacity model | Force gauges, DPU series load cells (*2) | Force gauges, DPU series load cells(up to 500N) (*2) |
| Function | Manual mode, JOG mode, Cycle mode | ||
| Digital setting of speed, counter, timer | |||
| Control | Emergency button,Operation control by load value(*3), Overload prevention(*3)(*4) | ||
| Safety devices | Stroke limit, emergency stop button | ||
| Power | AC100V-240V, free input | ||
| Size | Please refer to dimensions | ||
| Weight | Approx.18kg | Approx.19kg | Approx.26 kg |
| Option | Long stroke, Speed range change, Linear scale, Length meter, I/O connector type2 | ||
| Accessory | Grip Mounting Adapter(GF-1) | Grip Mounting Adapter(GF-2)High capacity model gauge mounting plate | Grip Mounting Adapter(GF-2), A small type force gauge mounting plate(MX2-2PK)、 |
| Manual, Power cable, Gauge mounting plate, Cover, Spare fuse, and Tools. | |||
Product Attachment

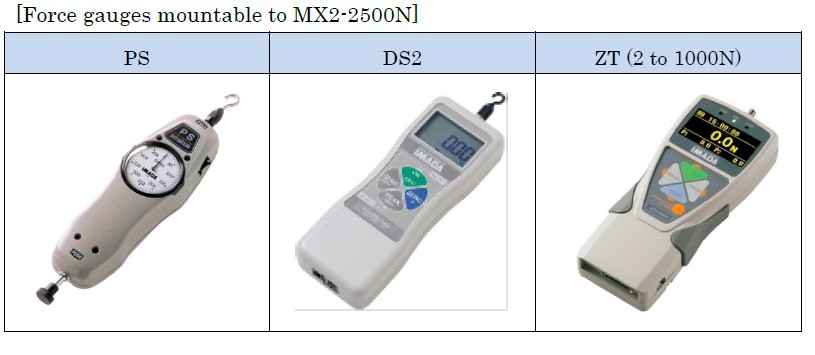

| File Name : IMADA MX2 test stand-Vertical(Force Gauges).jpg |
