Product Name : | RL3-511-G-2-BK/BK-P5 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | ROCKER SWITCH | |
| More Products : | Click here! | |
| Contact Details : | 源豐電子有限公司 YUEN FUNG ELECTRONIC LTD. | |
| Product Code : | RL3-511-G-2-BK/BK-P5 |
Product Details
ROCKER SWITCH (船形開關)
ON-OFF 2P SPST
UL / CUL / ENEC14 / CQC
(G): 6(2)A 250VAC T125/55 1E4
10A 125VAC
(H): 10(4)A 250VAC T125/55 1E4
12(8)A 250VAC T85/55 1E4
16A 125V/10A 250VAC 1/3HP
125-250VAC T105
ON-OFF 2P SPST
UL / CUL / ENEC14 / CQC
(G): 6(2)A 250VAC T125/55 1E4
10A 125VAC
(H): 10(4)A 250VAC T125/55 1E4
12(8)A 250VAC T85/55 1E4
16A 125V/10A 250VAC 1/3HP
125-250VAC T105
Product Attachment

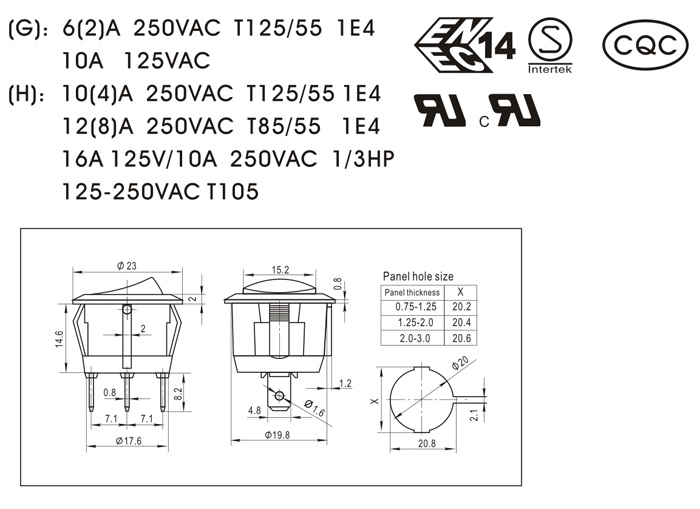

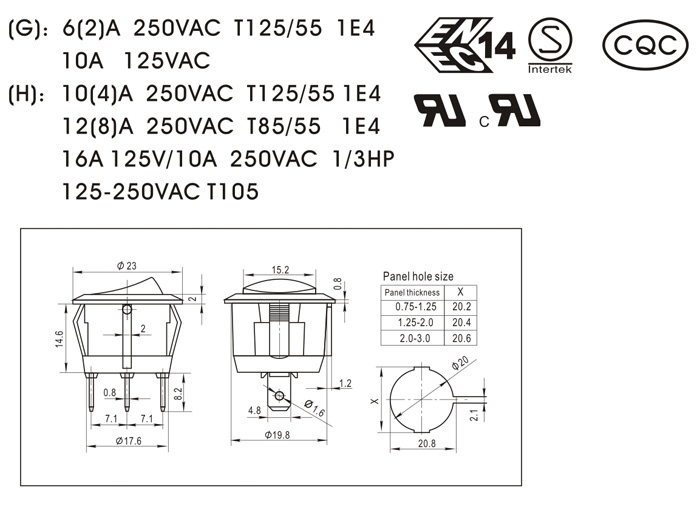

| File Name : RL3-500-G-0-RE-BK-P4 (DWG).jpg |
| File Size : 77.49KB File Type : image/jpeg |
