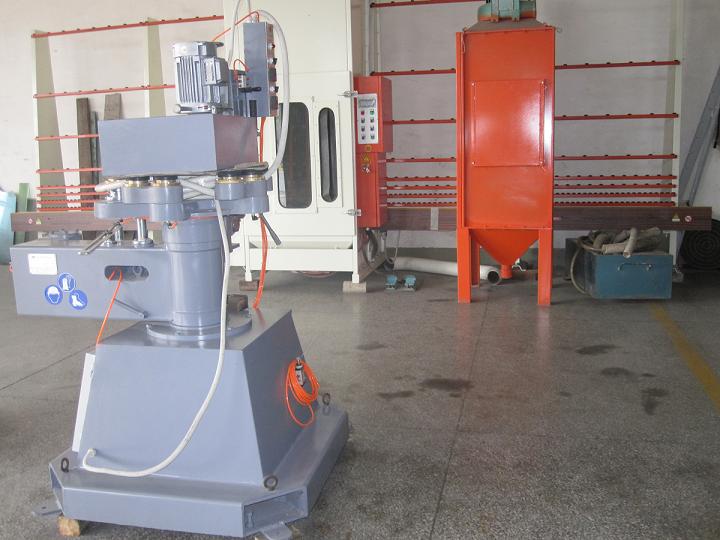

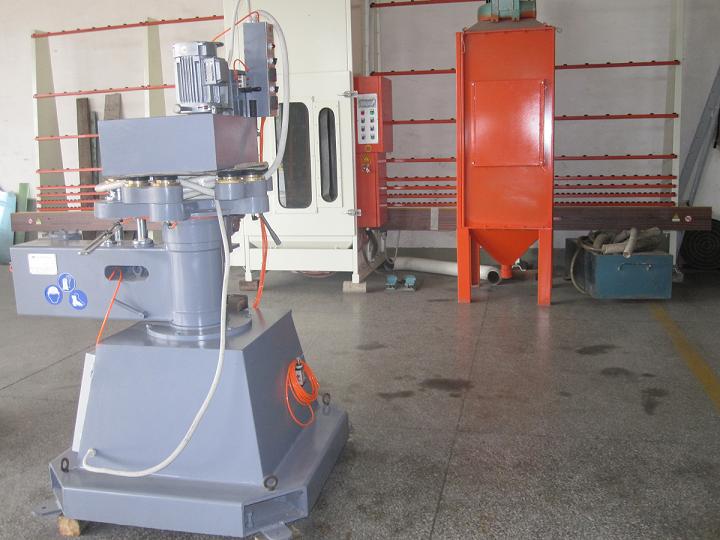

XD21-Glass Irregular Shape Edging Machine

Rotary aircraft apply to processing 100-2100mm diameter or 150X700mm flat glass will vary around hypotenuse, round edge, such as duck-mouth edge. Small size is easy to operate using the vacuum generator will replace the glass vacuum suction on the sucker. Step-less speed regulation with mechanical drive wheel motor-driven rotary dial or separate the sucker an independent rotation. Wheel rotation speed can be at work, arbitrary speed, speed smooth. The machine can also use the simple shape of the cylinder vary trip to semi-automatic grinding of glass. Merchantable glass different sizes, adjustable grinder movements can change rapidly grinding wheel position and replacement of grinding wheel. Grinding can be installed at the periphery three grinding wheels for coarse grinding, finishing grinding and polishing. Grinding hypotenuse, the installation wheel bowl, the grinding head tilted backward angle slant adjustment by end machining.

Main technical specifications:

1. Rotary diameter of glass: 100-2100mm

2. Glass thickness: 3-21mm

3. Bevel angle: 0-15°

4. Wheel speed: 0-2.5r/min

5. Wheel speed of satellite: 0-5r/min

6. Beveling wheel: 150mm

7. Grinding wheel: 100mm or 150mm (priority) or 175mm

8. Bevel diameter rotary grinding glass: 400-2100mm

9. Max bevel width: 35mm

10. Total power: 3kw

11. Weight: 1000kg

12. Voltage: 380V　50Hz
