IPQ100 IP Network Thermal & HD CCD Speed Dome
View Large
Product Name : IPQ100 IP Network Thermal & HD CCD Speed Dome
Product Origin : China
Product Category : Dome & speed dome cameras
More Products : Click here!
Contact Details : Sun Creative Technologies Inc.
Product Code : NVC005
Product Details

Thermal patent No shutting technology, continuous video outputSuper low power consumptionInstantaneous bootHigh definition CCD video output;High speed gimbal ball 360rotation.



Detector Amorphous silicon micro Focal plane array


Array format/pixel pitch: 384x288/25um


Sensitivity: 80mk@ 300K,50HZ


Frame rate: 50Hz


Spectral range: 814um


Focal lens: 35mm  F#=0.9


FOV: 15.5o    (H) x 11.5o     (V)


Spatial resolution :0.7 mrad


Focus: Fixed focalAthermalization lens


Thermal Imaging Adjustment


Nonuniformity calibration: No shutting technology


Booting: 3S


Noise reduction: Digital filtering


Gain: Auto(white hot)


Image resolution 768*576(PAL


CCD Characteristics


SONY Camera: FCB-EX1010P


CCD; 1/4 Inch EXview HAD CCD


Optical zoom :36X optical zoomf=3.4mm~122.4mm


Digital zoom: 12X


FOV: 57.8°(Far-end-17°(Near end


Minimum focus: 320mmfar end-1,500mm(near end


Minimum illumination: 0.1Lux(typical) (F1.6,50IRE)


Speed Dome characteristics


Decoder :Built in


Electromotor : Stepping motor


Synchronization: Power synchronization


Preset position: 128 pointsprecision0.05o


Cruise scanning: 6, 6 position preset position for each one, preset time adjustable


Focus speed Auto adjust


Up down angle: -2°~+93°


Horizontal angle: 360°


Up down manual rotate speed(Maximum): 150° /S


Horizontal manual rotate speed(Maximum): 200°/S


Serial port: RS485


Auto reverse function: Vertical 180o Auto reverse


Night sight: Auto switch CCD illumination


Infrared light: 4 built in laser infrared lights


Baud rate: 2400/4800/9600/19200bps


Lightning withstand: Built in surging and lightning stroke protection


Network


Video process: H.264 video format, support dual stream, AVI format; support     0.1M~6Mpbs stream adjustable; Frame rate 1~30 frame/s adjustable


Video output: Main steam:704*576,352*288;sub stream:352*288


Network protocol: ONVIF/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP


Subtitle overlying: Support channel name ,date, time overlying


3G: SupportOptional


WIFI: SupportOptional


Alarm input: 2 channel switching value input


Alarm output:  1 channel switching value output


SD card(built in):  Maximum 32G


Support items: Support WEB configure, Support OSD, Support real time video transmission ,Support motion detection and IO alarm function  Support front end save, playback and download; Support motion detection and IO alarm security center and images pop out; Support JPEG image save; Support client software, MYEYE; Provide SDK;


Mobile phone support:  iPhoneWindows MobileBlack BerrySymbianAndroid


Other Default IP address192.168.1.10


Power Supply


Power supply AC: 24±4V,50Hz


Power consumption <25W


Environmental


Working temperature: -40℃~60


Storage temperature: -50℃~+65


Encapsulation: IP66


Physical


Weight 4Kg


Dimension φ245mm x 345mm


Interface and accessories


Cable: Power cable(1m) with RJ45


Power adaptor: AC24VAC220V input


Product Attachment

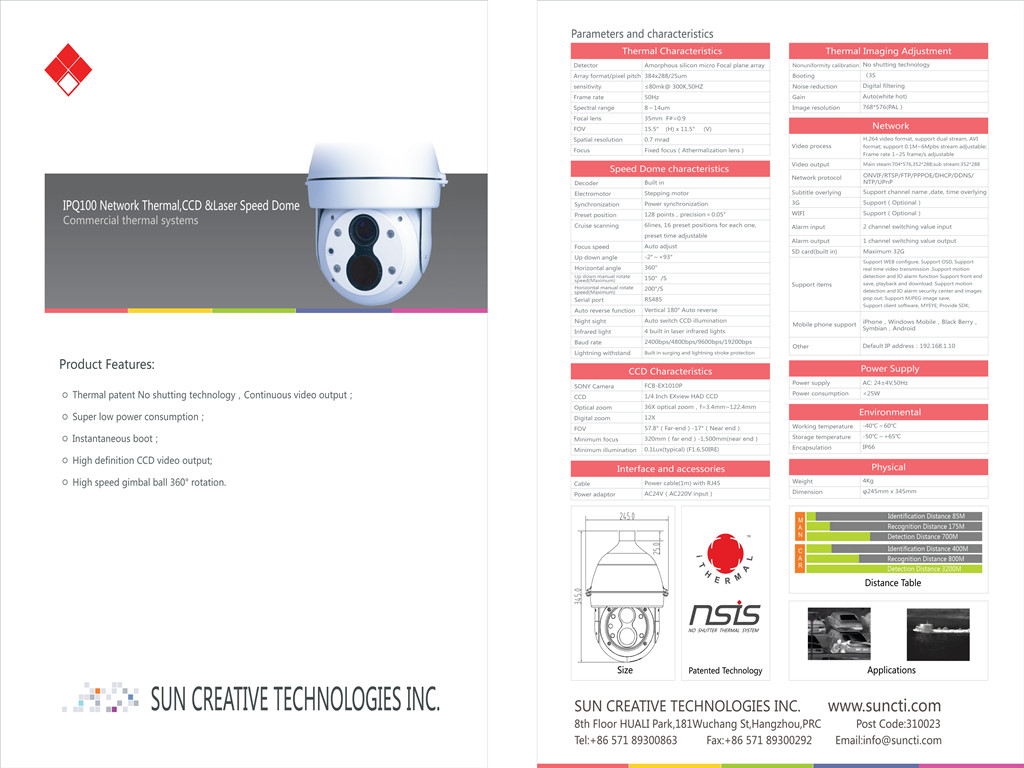

File Name : SCTI IPQ100.jpg
