Product Name : | Bi-Directional Microphone, Omni-Directional Microphone, Uni-Directional Microphone |
| Product Origin : | China | |
| Product Category : | Speaker/microphone parts | |
| More Products : | Click here! | |
| Contact Details : | Microsonic Technology Limited | |
| Product Code : | Bi-Directional Microphone, Omni-Directional Microp |
Product Details

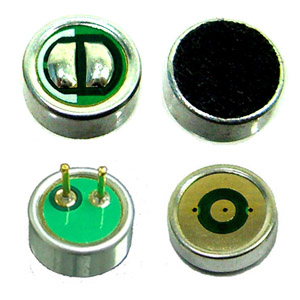

Bi-Directional Microphone, Omni-Directional Microphone, Uni-Directional Microphone
Diameter (mm): 6.0 - 9.7
Height (mm): 2.2 - 5.2
Sensitivity (0dB=1V/Pa at1KHz): -44 ~ -52 db
Impedance (KΩ) Max.: 2.2
Standard Power Supply (VDC): 2.0
Current Consumption (mA) Max.: 0.5
Application: Telecommunications, Audio, Toys, Hands-free, Headsets, Cellular Phones and Home Appliances
Diameter (mm): 6.0 - 9.7
Height (mm): 2.2 - 5.2
Sensitivity (0dB=1V/Pa at1KHz): -44 ~ -52 db
Impedance (KΩ) Max.: 2.2
Standard Power Supply (VDC): 2.0
Current Consumption (mA) Max.: 0.5
Application: Telecommunications, Audio, Toys, Hands-free, Headsets, Cellular Phones and Home Appliances
