Product Name : | RL3-311/N-G-2-GR/BK-P4 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | ROCKER SWITCH | |
| More Products : | Click here! | |
| Contact Details : | 源豐電子有限公司 YUEN FUNG ELECTRONIC LTD. | |
| Product Code : | RL3-311/N-G-2-GR/BK-P4 |
Product Details
ROCKER SWITCH (船形開關)
W/LAMP (GREEN) (帶綠色燈)
ON-OFF 3P SPST
UL / CUL / ENEC14 / CQC
(G): 6(2)A 250VAC T125/55 1E4
10A 125VAC
(H): 10(4)A 250VAC T125/55 1E4
10(2)A 250VAC T85/55 1E4
16A 125V/10A 250VAC 1/3HP
125-250VAC T105
W/LAMP (GREEN) (帶綠色燈)
ON-OFF 3P SPST
UL / CUL / ENEC14 / CQC
(G): 6(2)A 250VAC T125/55 1E4
10A 125VAC
(H): 10(4)A 250VAC T125/55 1E4
10(2)A 250VAC T85/55 1E4
16A 125V/10A 250VAC 1/3HP
125-250VAC T105
Product Attachment

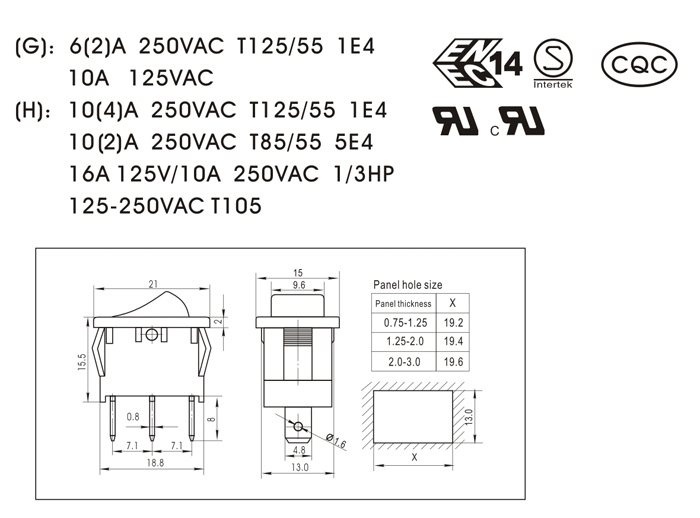

| File Name : RL3-311-N-G-2-GR-BK-P4 (DWG).jpg |
| File Size : 72.56KB File Type : image/jpeg |
