DC Power Jacks 直流電源插頭
View Large
Product Name : DC Power Jacks 直流電源插頭
Product Origin : Hong Kong S.A.R., China
Product Category : Power plugs/sockets/jacks (Electronic Components)
More Products : Click here!
Contact Details : Sunny Development Co 新力發展公司
Product Code : TC18-041
Product Details

1. Dielectric Strength


    500 volts AC (50/60Hz) for 1 minute.


2. Insulation Resistance


    100 megohms Min. at 500 volts DC


3. Contact Resistance


    30 millohms Max. (Between Terminals)


4. Mechanical


    0.3kg to 3.0kg (Insertion Force)


    0.3kg to 3.0kg (Extraction Force)


5. Life Test


    5,000 cycles of insertion and extraction


    at a rate 25 to 30 cycles per minute.

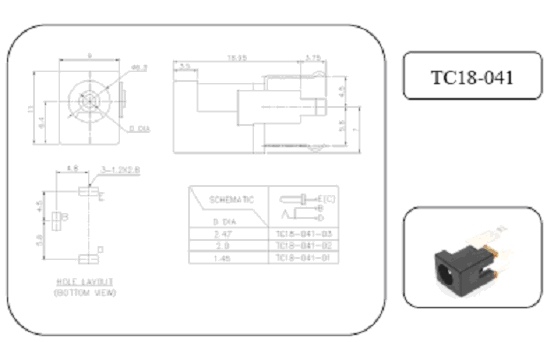

Product Attachment
File Name : Clipboard26.jpg
File Size : 38.78KB     File Type : image/jpeg
DC Power Jacks 直流電源插頭
