Product Name : | Twin lens CCD reversing camera with Sony sensor |
| Product Origin : | China | |
| Product Category : | Color CCD cameras | |
| More Products : | Click here! | |
| Contact Details : | Topccd Industrial Co.,Ltd. | |
| Product Code : | TOP-S5202R |
Product Details
Twin lens CCD reversing camera
Feature:
1.)2pcs separate cameras to provide full view on the back of the vehicle
2.)Compact size for more convenient installation
3.)Aluminum die-cast housing,waterproof and vandalproof
4.)Day/night sensor automatic adjustment
5.)11 pcs Infrared LEDs for each
6.)3.6mm lens (95 deg)or 2.8mm lens (120 deg) (optional )
7.)Mirror Normal image switch (optional)
8.)DC12V or DC12V/AC24V double voltage (Optional )
9.)Casing color optional:black,white
10.)Plugs optional:RCA,Screw plug
Specification:
Model:TOP-S5202R
1.)Image Device:1/3 inch color SONY CCD
2.)TV System:PAL/NTSC
3.)Effective Pixels:PAL:628(H)*582(V),NTSC:628(H)*492(V)
4.)Sensing Area:4.9mm(H)×3.7mm(V)
5.)Scanning System:2:1Interlace
6.)Sync.System:Internal
7.)Resolution:520TV lines
8.)Horizontal Sync.Frequency (KHZ):15.625/15.734
9.)Vertical Sync.Frequency (HZ):50/60
10.)Minimum Illumination:0 Lux/F1.2 (with IR)
11.)11pcs/F5 Infrared LEDs for each,8m IR working distance
12.)Video Output:Composite Signal (1.0Vp-p, 75Ω )
13.)Gamma Consumption:0.45
14.)AGC:Auto
15.)BLC:Auto
16.)S/N Ratio:48dB
17.)White Balance:Auto
18.)Electronic Shutter:1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
19.)IP67 Waterproof design
20.)Anti-vibration: 10g
21.)Lens:3.6mm (92 deg) or 2.8mm (120 deg) (Optional )
22.)Power Supply:DC12V or DC12V/AC24V double voltage (Optional )
23.)Current Consumption:Max.200mA
24.)Operating Temperature (Deg.C):-30~+70(RH95%MAX.)
25.)Storage Temperature (Deg.C):-40~+80(RH95%MAX.)
26.)Support Normal / mirror image switching by cable control
27.)Casing material: Aluminum
28.)Casing color optional:black,white
29.)Dimension:96 (L) *86 (W) *66 (H) mm
30.)Weight approx: 545g
Product Attachment

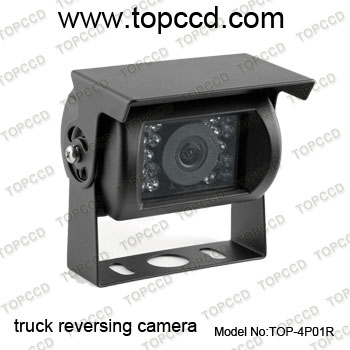

| File Name : TOP-4P01R.jpg |
