6.3MM Phone Jack 電話插掣
View Large
Product Name : 6.3MM Phone Jack 電話插掣
Product Origin : Hong Kong S.A.R., China
Product Category : Telephone plugs/sockets/jacks
More Products : Click here!
Contact Details : Sunny Development Co 新力發展公司
Product Code : TC68-200
Product Details

1. Dielectric Strength


    500 volts AC (50/60Hz) for 1 minute


2. Insulation Resistance


    100 megohms Min. at 500 volts DC


3. Contact Resistance


    30 millohms Max. (Between Terminals)


4. Rating


    12 volts DC 0.5A


5. Switching Life


    5,000 cycles min. at a rate 25-30 cycles per minute

Product Attachment

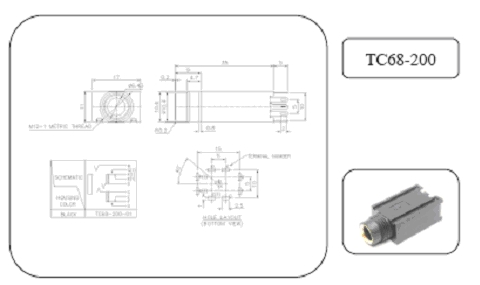

File Name : Clipboard08.jpg
File Size : 29.32KB     File Type : image/jpeg
6.3MM Phone Jack 電話插掣
