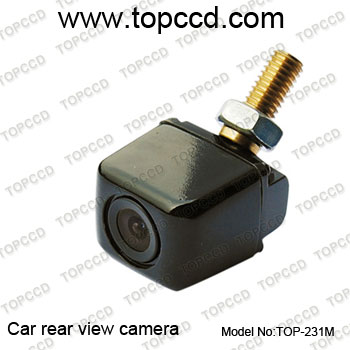

Rear view camera with guide line function optional
View Large
Product Name : Rear view camera with guide line function optional
Product Origin : China
Product Category : CCTV CMOS cameras
More Products : Click here!
Contact Details : Topccd Industrial Co.,Ltd.
Product Code : TOP-231M
Product Details
Feature:

1.)Super wide angle 170deg(diagonal)

2.)Waterproof camera for long-term outdoor usage

3.)Compact size for more convenient installation

4.)Hidden-type,specially designed for car rear view systems

5.)Anti-theft mounting with screw nut locked from inside

6.)Other functions:Parking line,Mirror image and original image(optional)



Specification:

Model:TOP-231M

1.)Image Device:Micron CMOS low illumination sensor (MT9V136)

2.)TV System:NTSC/PAL

3.)Effective Pixels:NTSC:720(H)*480(V),PAL:720(H)*576(V)

4.)Sensing Area:3.584mm(H)*2.688(V)mm

5.)Scanning System:2:1Interlace

6.)Sync.System:Internal

7.)Horizontal Definition:420 TV Lines

8.)Minimum Illumination:0.1Lux/F1.2

9.)Video Output:1.0Vp-p 75 ohm

10.)Gamma Consumption:0.45

11.)AGC:ON

12.)S/N Ratio:Better than 48dB

13.)White Balance:Auto

14.)Electronic Shutter:1/50Sec-12.5Sec (PAL) / 1/60Sec-12Sec (NTSC)

15.)BLC:Auto

16.)Waterproof:IP67-IP68

17.)Current Consumption:Max.65mA

18.)Power Supply:DC12V

19.)Operating temperature:from -20deg to +75deg (relative humidity 95% max)

20.)Storage temperature:from -40deg to +85deg (relative humidity 95% max)

21.)Lens:1.7 mm

22.)Lens Angle:170deg(diagonal)

23.)Weight:0.25kg

24.)Other functions:Parking line,Mirror image and original image(optional)


Product Attachment
File Name : TOP-231M.jpg
File Size : 23.51KB     File Type : image/jpeg
