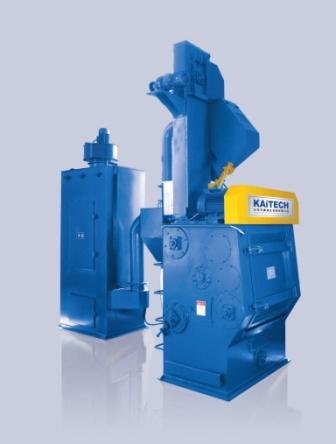

Product Name : | Q326 tumble belt type shot blasting equipment |
| Product Origin : | China | |
| Product Category : | Abrasive blast cleaning equipment | |
| More Products : | Click here! | |
| Contact Details : | shandong kaitai shotblasting machinery co.,ltd | |
| Product Code : | Q326 |
Product Details
Information introduction:
This series is used for surface cleaning,rust romoving,and surface intensification of each kind of middle and small scale casting, forging and job. It is suitable for diffenent production scale, can be stand-alone use and many units can also be used in conjunction with the continuous conveyor components, composing the production of clean-up lines.
It has the advantages of no pit, compact structure, and high productivity.
reasonable structure small energy consumption and high efficiency.
parameter |
Q326 |
Q3210 |
QR3210 |
Producitivity (T/H) |
0.6-1.2 |
3-5 |
1.5-2.5 |
Loading weight (KG) |
200 |
800 |
600 |
The maximum weight of one piece (KG) |
10 |
15 |
30 |
Diameter of roller (MM) |
650mm |
1000mm |
1000mm |
Available capacity (M3) |
0.15 |
0.4 |
0.3 |
Blasting capacity (KG/MIN) |
100 |
250 |
250 |
Dedusting air volume (M3/H) |
2200 |
6000 |
5000 |
Power consumption (KW) |
12.6 |
32.6 |
24.3 |
Appearance dimension (MM) |
3681*1650*5800 |
3644*2926*5856 |
3972*2600*4768 |
Total weight of machine (KG) |
2340kgs |
5843kgs |
7400kgs |
